ConcR Box

ConBox is a multi-point multi parameter measuring device compatible with ConcR Sensors and optimised for the construction industry


Quality Control Monitoring
Curing process Optimisation
Early Cracking Prevention


Easy to install
Battery powered and lives up to 2 years*
Low power consumption
Robust and ergonomic housing
Optimised for the construction site
It can be also embedded in concrete

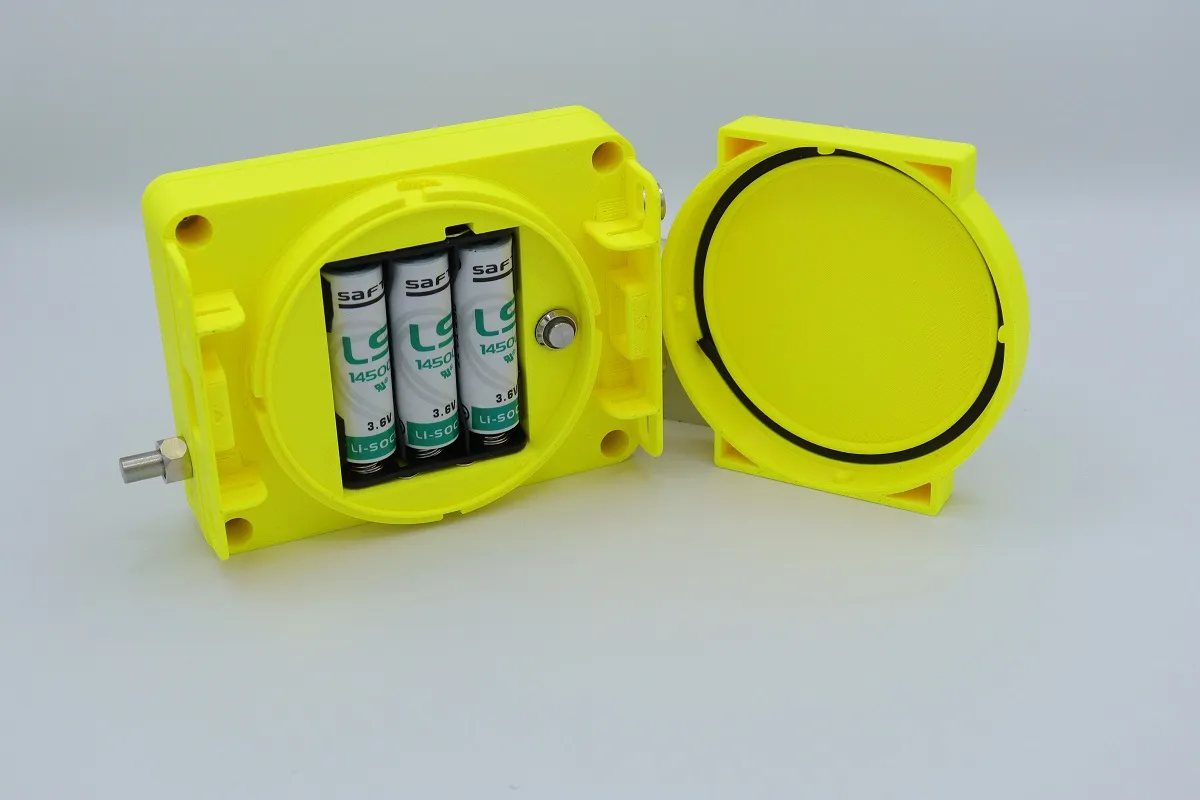

Easy replaceable AA batteries
Technical specifications
  • Continuous diagnosis of connected sensor
  • Included ambient temperature sensor
  • compatible with ConSensors (Temperature, Humidity and Moisture)
  • Support up to 3 sensors or up to 3 parallel measurement points
  • Plug-and-Play (no need for gateways)
  • Power saving (switches automatically to sleep mode when there is no sensor connected)
  • Optimised housing for construction sites and concrete production lines
  • Operates on widely available LTE Network**
  • Remote Diagnosis

** NB-IoT, LTE-M

Data transmission

Network NB-IoT/ LTE-M
Transmission interval every 20 minutes*
Range Up to 15 km**
Coverage Available in more than 140 countries

* Interval can be adjusted according to the use-case needs

** Depending on deployed cell towers

Mechanical specifications

Dimensions 110x85x40 (cm)
IP Rating IP65 (uncertified)
Material PC-ABS
Weight 200g

Install on rebar using zip ties or fix to wall or installed on formwork using mounting holes

Connect sensor and device will be activated automatically

Check the health of your device on ConcR Insights
